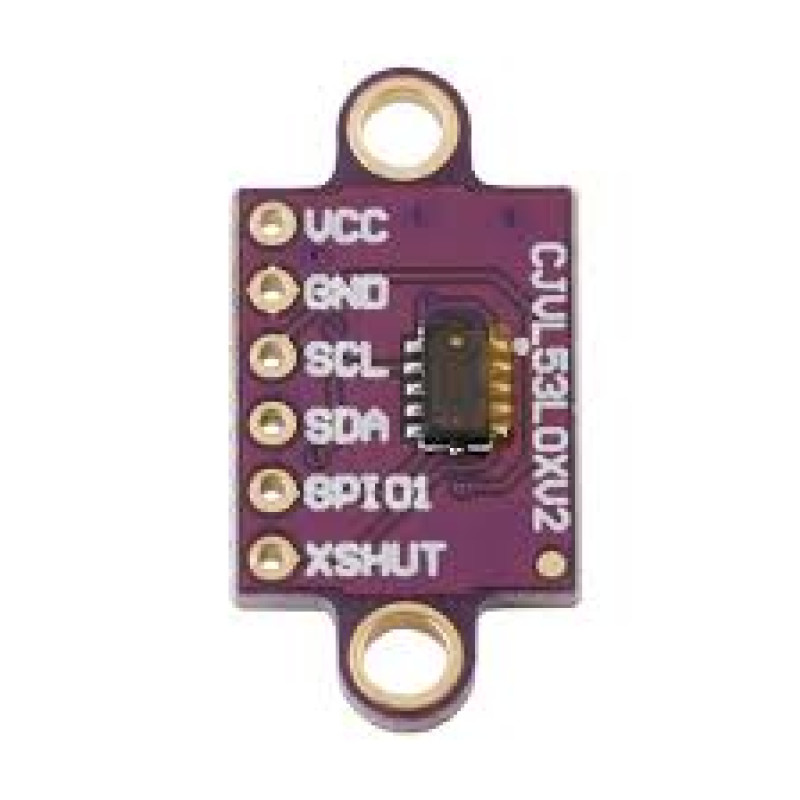

GY-VL53L0XV2 Laser ToF flight time ranging sensor module
৳ 450 ৳ 420
Product Code: PKB 2845
Dial to order by phone
01683623013
| Inside Dhaka | ৳ 60 |
| Outside Dhaka | ৳ 150 |
| Pickup From Store | ৳ 0 |
| Inside Mirpur and same Day Delivery | ৳ 100 |
01611526238
| China Product | |
| 100% Pay Cash on Delivery Avilable | |
| Delivery within: 2-3 business days |
The VL53L0X V2 (GY-VL53L0XV2) is a high-accuracy Time-of-Flight (ToF) laser ranging sensor that can measure distances up to 2 meters. It's ideal for gesture sensing, obstacle detection, and IoT applications requiring compact, low-power, and precise distance measurement. The VL53L0X V2 (GY-VL53L0XV2) is functionally similar to V1 but offers improved signal stability and build quality. While both versions use the same ST VL53L0X chip, the V2 module typically features a slightly larger PCB (25x13mm) with better trace routing, additional capacitors, and more robust pull-ups. It's more plug-and-play friendly for modern ESP boards and includes clear labeling for I²C, XSHUT, and GPIO pins.
📏 VL53L0X V2 Sensor Overview
- Range: 3cm to 200cm (Max)
- Interface: I²C digital communication
- Resolution: 1mm
- Field of View: ~25°
- Operating Voltage: 3V to 5V
- Typical Current: ~20–40mA
- Compact Board Size: 25mm × 13mm × 3mm
- I²C Pins + XSHUT + GPIO (interrupt/reset)
